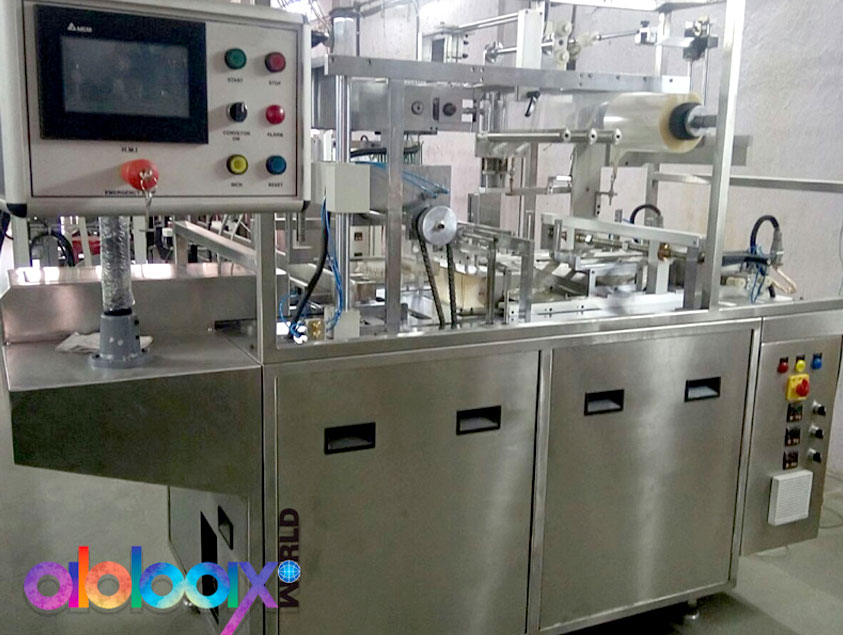

Product Overview

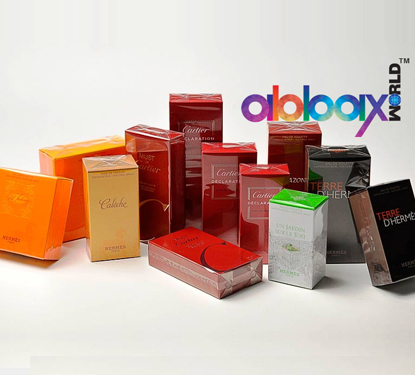

- Product: Any Cartons like Cosmetic / Perfume Cartoons (square / Rectangular) up to 90mm Max Height.
- Purpose of the machine: To Over Wrap Cartons with Heat Sealable BOPP Film 25 to 30 microns.
Description of operation
- The Carton will be loaded manually or can be connected to Cartooning machine on the input conveyor (If the cartooning will be Horizontal type).
- At the end of the conveyor, each Carton are separated by the main pusher and pushed to the wrapping station.
- The film will be drawn and cut to the required perfect size with the help of Servo PLC operation.
- Tear Tape provided as per your requirement which is draw with BOPP film with provided v-notch cut.
- The Carton will pick up the film when pushed up to the wrapping station.
- The flaps will be folded and sealed by Folder and heaters respectively.
- The Ends will be folded by pair of Folders and sealed with heater body.
Scope of Supply
- Main Machine
- Input Conveyor
Technical Specification
| Power Input | Total Power require 2.5 KW 3-phase 440V AC |
| Motor & Gear Box | Non-flame proof, 1HP for Main Motor Make Siemens / Hindustan with Bonfigloli Make Gear Box & 0.75KW Servo Motor Make Panasonic / Techo for Film draw operation with require Exact Cut Length. |
| Air Input | 5 kg /cm2 (4 CFM) Dry Compressed Air. |
| Type of seal | One Side and two ends with Dot if require (Total three Sides Seals) with overall 1KW heater capacity. |
| Packing material | Heat treated Biaxial Oriented Poly Propylene. (B.O.P.P.) 25 to 30 Microns thickness. |
| M/C suitable to Wrap | Any size, as given with the help of change parts. |
| Change over parts | Pusher Plate, Fingers (Tuckers), Folders, Heater Body Plates, SS Heater body Guides. |
| Ideal Output | Up to 35 Packs/Minute Max depending on the size & rigidity OR stiffness of the carton. |
| Input conveyor | Endless type made of Shilon-40. |
| Conveyor Dimensions | 2 Mt. Long, 6” wide, 1/8 “Thick. ( Dimensions subject to change according to carton size) |
| Conveyor Drive | Through the machine/separate depending on the size & weight of the cartons. |
| Control Panel | Will be provided SS 304 Control Panel with PLC Logic operational work & also provided HMI touch screen for easily operational work. |
| Accessories | Temperature Controller – PID type Make – Selectron TC-203 Heater & Probe – 1Kw overall Make – Heatrej dia.3/8” with 230V & 200W Probe – FEK Washer type Sensor – Proximity sensor dia. 12mm OR 18mm PNP NO type 10-30V DC Make –P & F, HI-Tech, Wangular, Datalogic (as per requirement of Application) Pneumatics – Tear Tape & Side Seal Cylinder Make – Festo / Janatics / Pneumax Solenoid Valve - Make – Festo / Janatics / Pneumax Fittings & Air Tube - Make – Festo / Janatics / Pneumax FRL Unit - Make – Festo / Janatics / Pneumax |
| Guards | All Guards with SS 304 Frame structure with Dull Buff finish as per your requirement. Also Top Frame with SS 304 Sq. Pipe with Provided Polycarbonates / Acrylic covers. |
| Weight | Approx. 750 Kg. |
Special Features
| Flexibility | Machine suitable for changing over from one size to another with the help of easy change over. |
| Ease of operation | The machine is designed for simple operation. Especially the change over which consists of maximum tool-less operation. |
| Change over | Easy and fast change over with simple change parts ie. Within a Half an Hour. Also suitable for any size of the product (but specify initially cartoon sizes) |
| Quality | Over Wrap finish at par compared with any Multinational Machine. |
